Full App - Mach3 Extension:

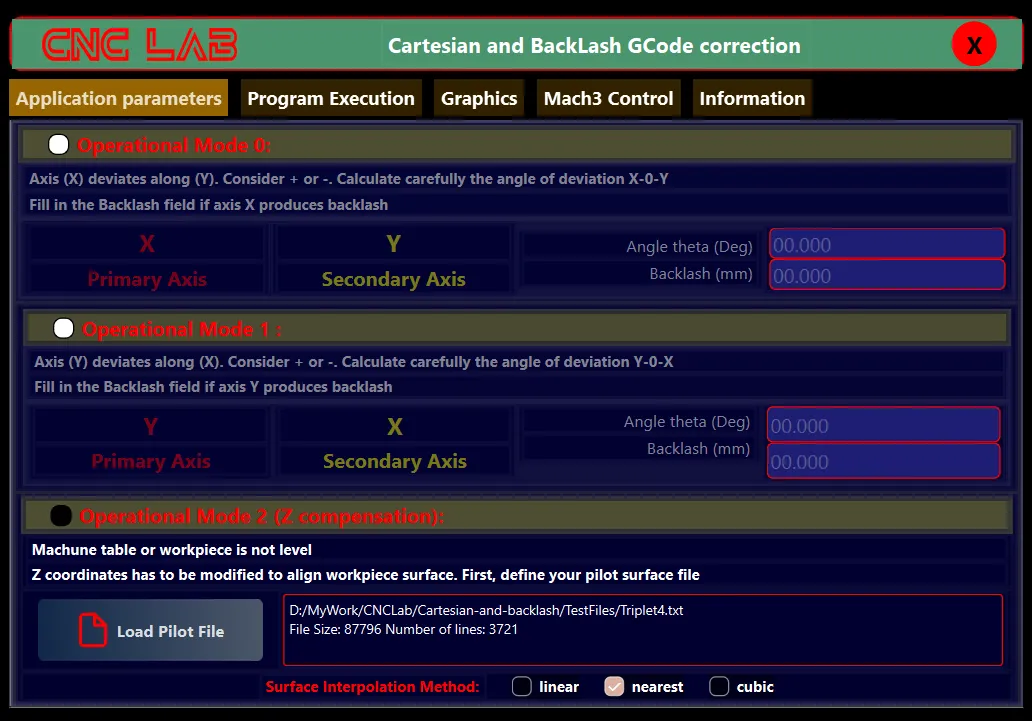

All-in-one solution for backlash and Cartesian correction in misaligned kinematics and uneven surfaces for Mach3 controller
📌System main characteristics
↔️ X/Y Surface Correction
↕️ Z-Axis Adjustment
📐 Surface Level Compensation

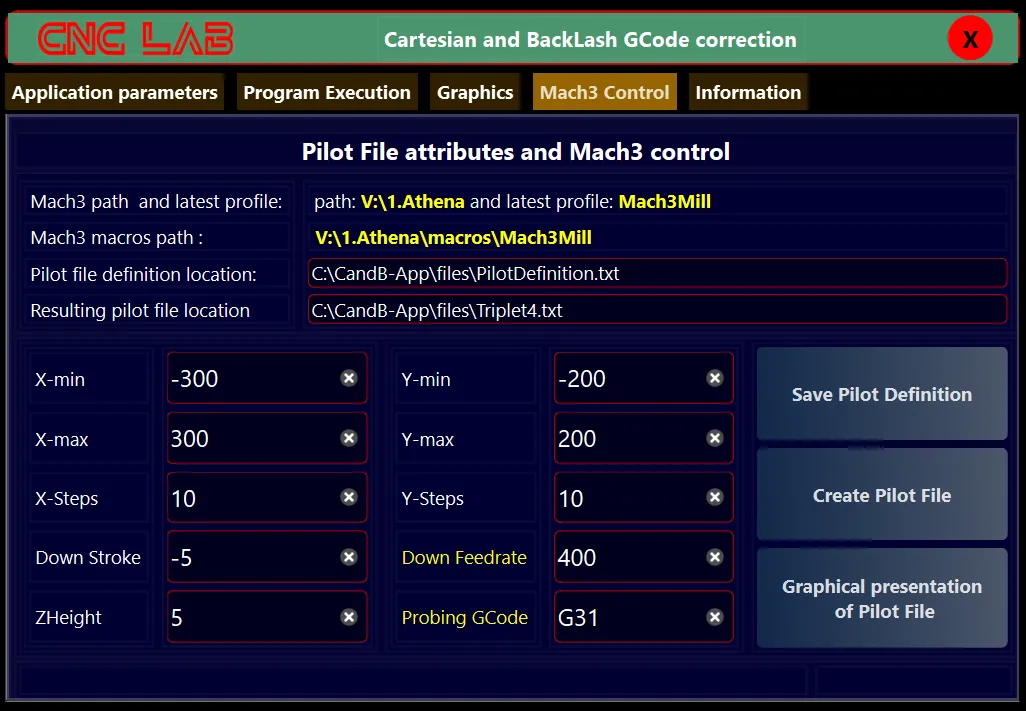

🧭 Pilot Surface Generation via Mach3
🖲️ Surface Scanning with Mach3
🛠️ G-code Adaptation to the Real Surface
🌀 Toolpath Modification
☁️ G-code Upload to Mach3
🚀 Mach3 Ready for Execution
🔄 Fully Integrated Workflow
Light version - Mach3 macros expansion:
Precision Z-Axis Correction for All Mach3 Operations on Non-Flat Surfaces
📌 CandB-App light version main characteristics
↕️ Z Compensation based on surface data

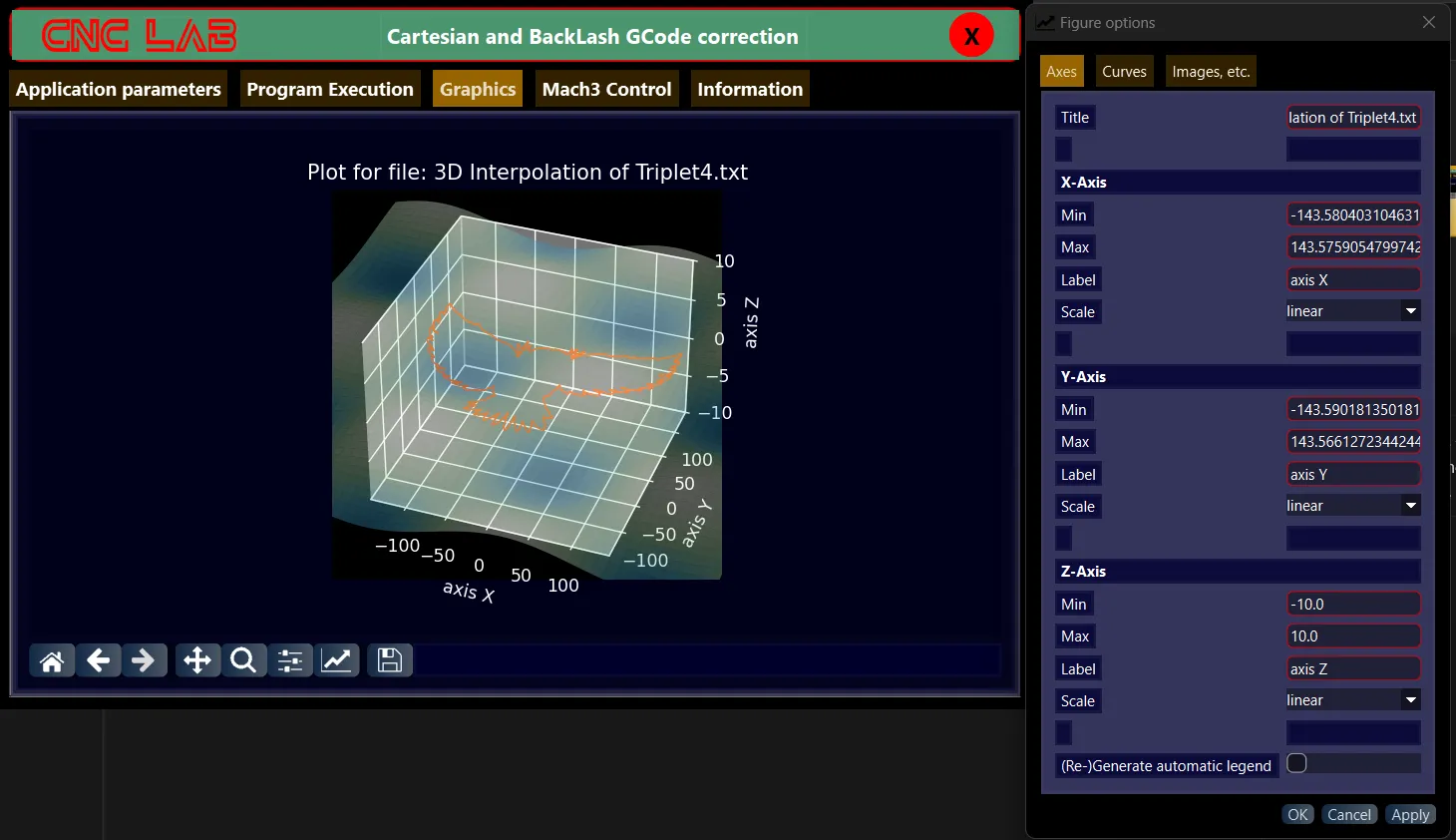

📊 Z-Axis Range & Surface Stats Visualization

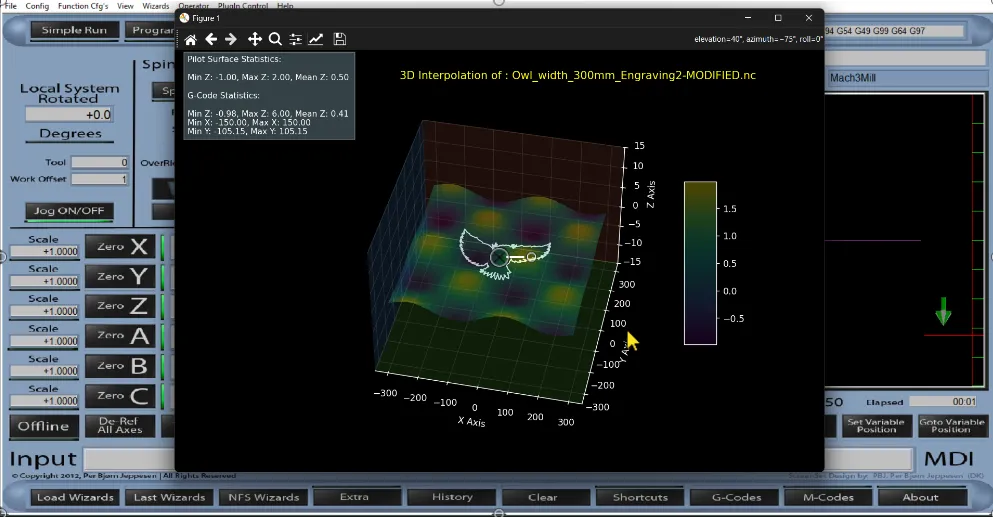

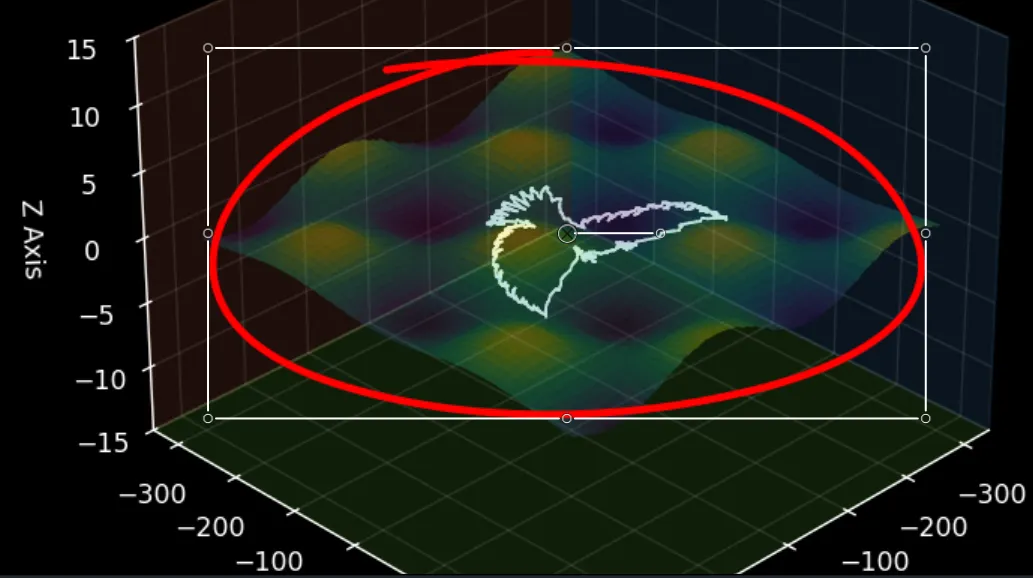

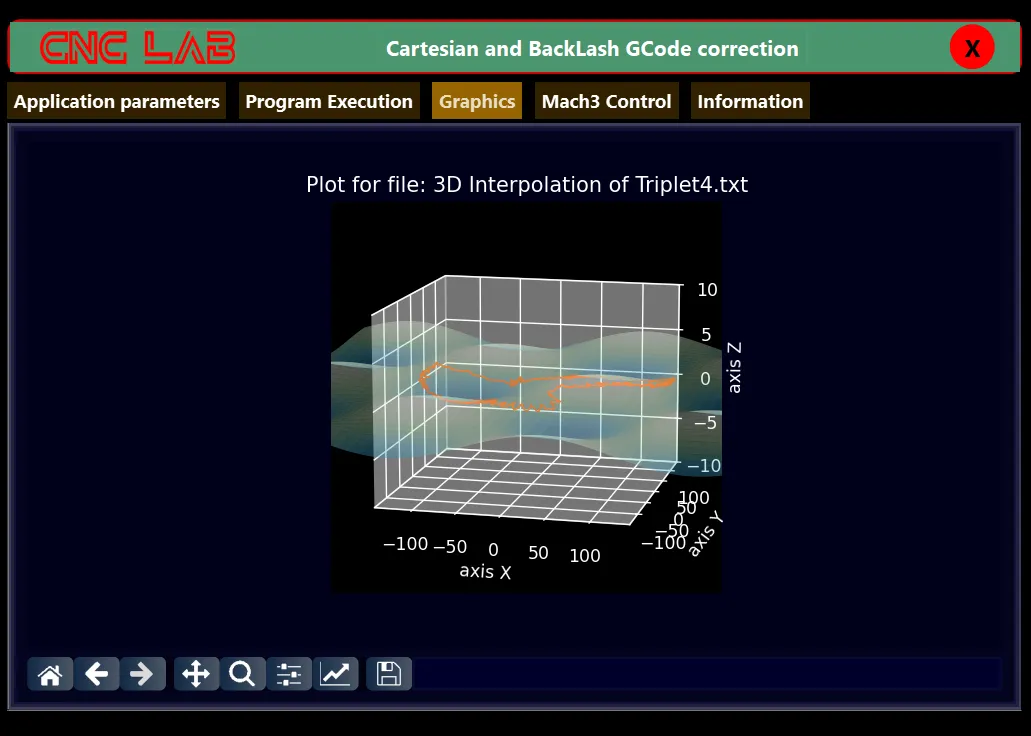

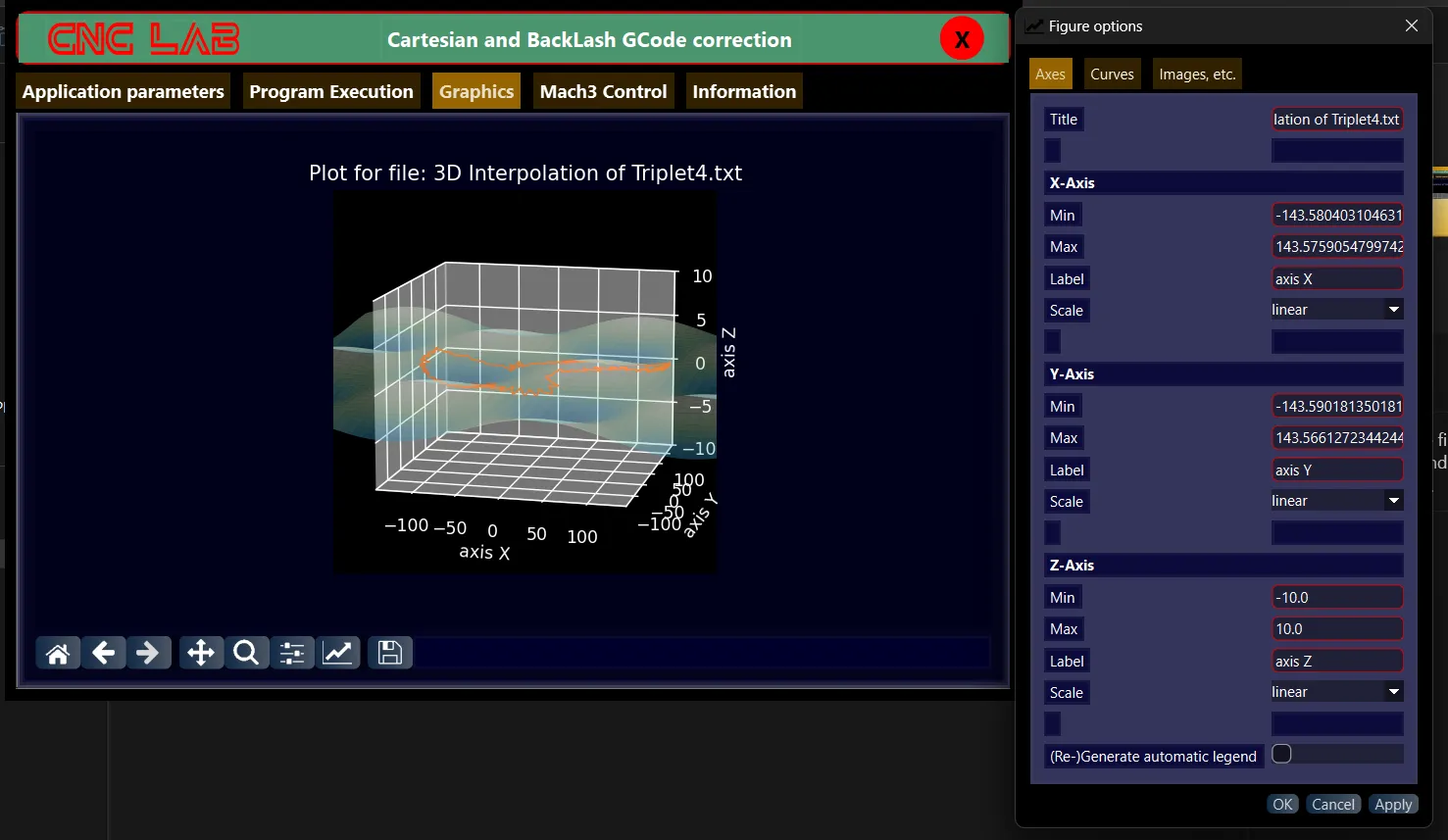

📈 3D Interpolation Viewer with Overlaid Toolpath

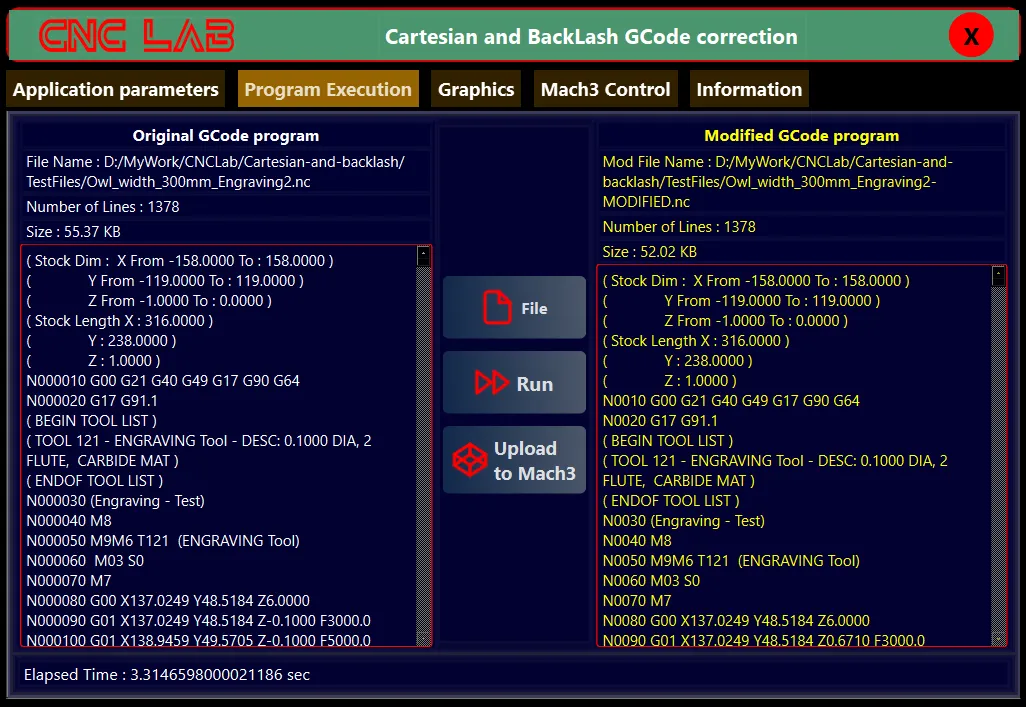

🧾 Modified G-Code Preview with Z Corrections
⚙️ Compensation Engine Execution (zComp.exe)

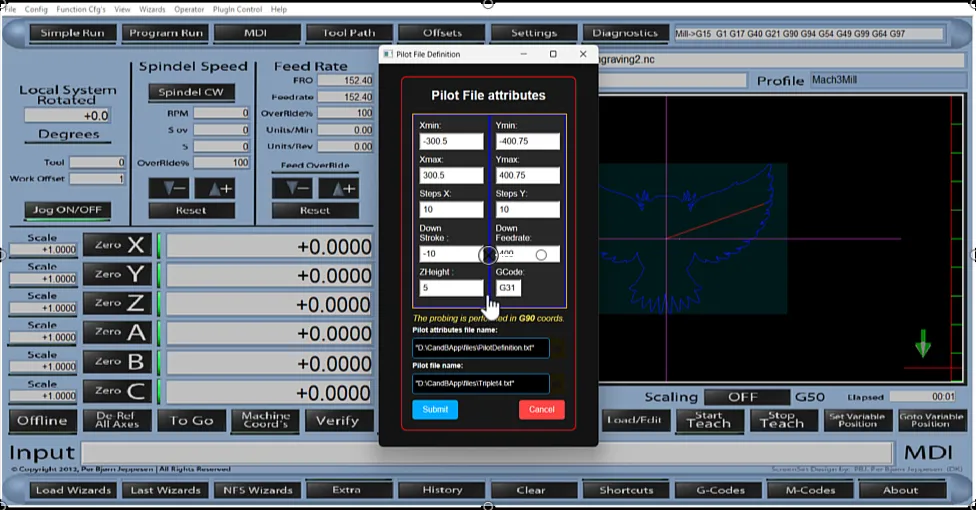

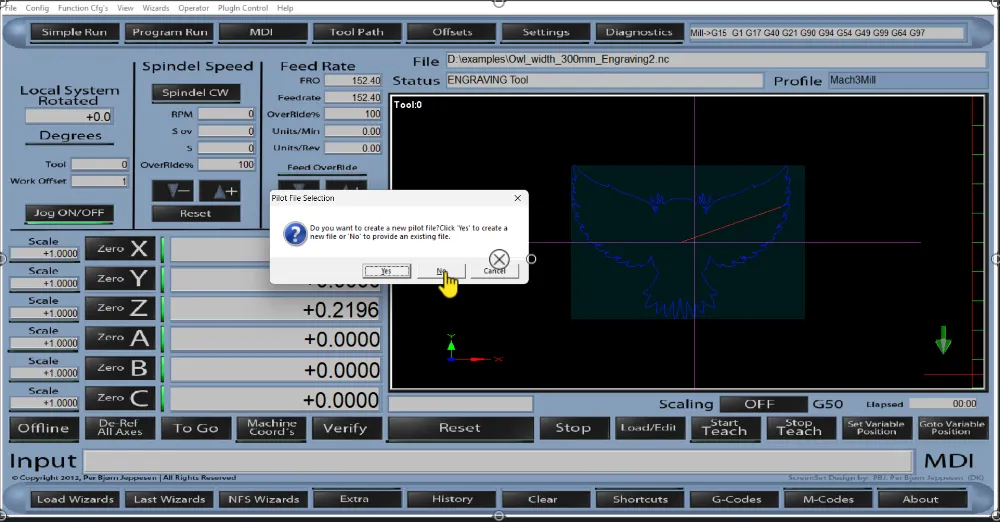

🗂️ Pilot File Selection Prompt
📐 G-Code vs Surface Range Comparison

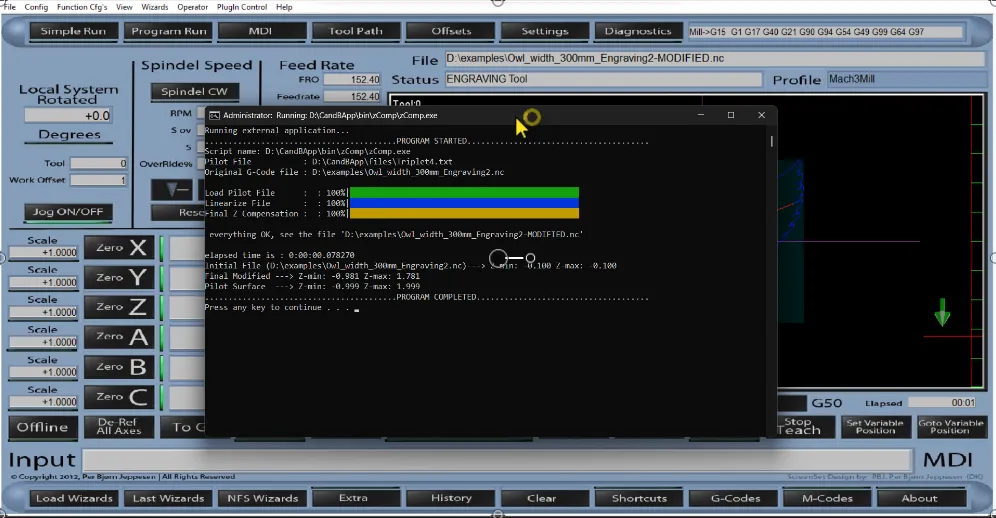

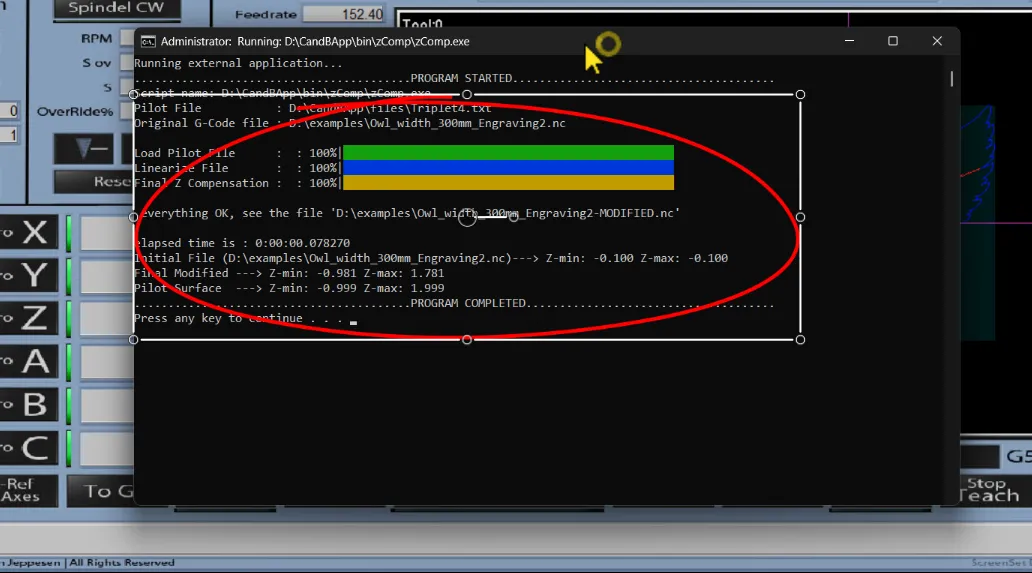

📁 G-code Modification Log Output (Terminal)

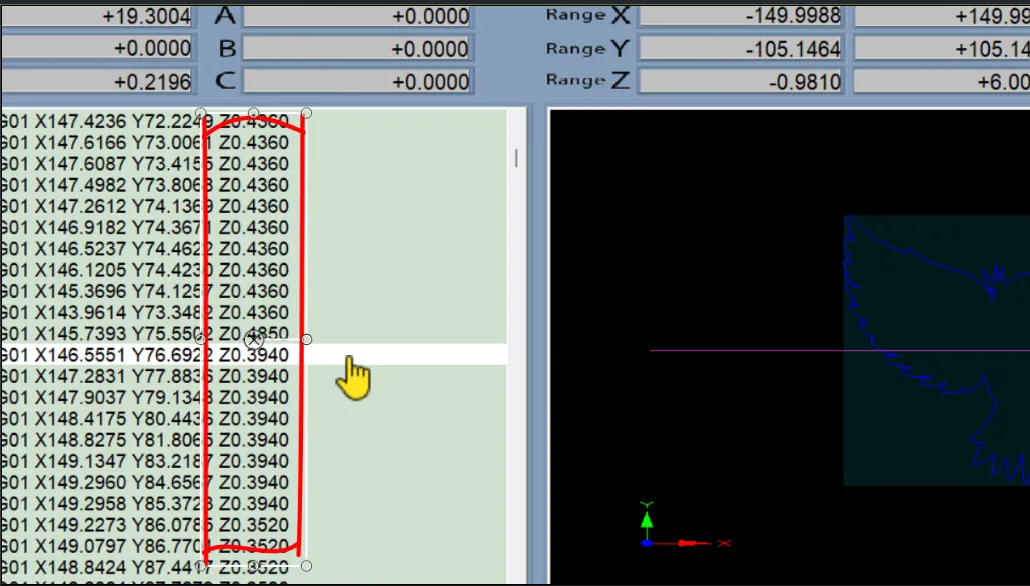

🔍 Line-by-Line G-Code Z Path Monitoring
